WG Series Pulse Vacuum Autoclave

WG Series Pulse Vacuum Autoclave

Brand:NANBEI
Model:WG Series Pulse Vacuum Autoclave
Application:Laboratory,School,Hospital,Factory,Home...
Product Details

WG Series Pulse Vacuum Autoclave





Product description about the Pulse Vacuum Autoclave:

This scries of pulsation vacuum sterilizer utilizes saturated steam as its sterilization medium which releases a large amount of heat in the stage of condensation, and ensure the sterilizing environment in high temperature and at a certain humidity.

After a period of insulation in such status, sterilization purpose is achieved. The application of pulsating vacuum exhausting has successfully eliminated the temperature influence from cold air, and helping the sterilization items to be dried by means of vacuum and dehumidification between the jacketed layers.





Structure and Characteristic of the Pulse Vacuum Autoclave:

It is designed and manufactured in accordance with GB150 *the Pressure Vessel. GB8599 The Technical Requirements of Large Steam Serilier-Automatic Control Protocol". and TSG Rt004 the -Safety and Technology Specifieation for Fixcd Monitor VesseNi and related insetion procedures.

The chamber in horizontat rectangular shape with doublelayer structure is made from S3008

Doot sealing: Pneumatic scaling: both doors are interlocked and completely conform to the requirementsof the

specification about the Pulse Vacuum Autoclave:

With standard GMP authentication interface.

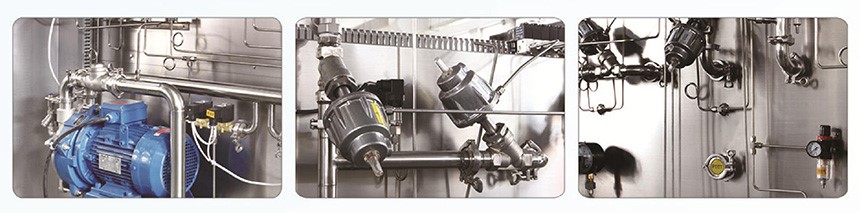

Strlizer piping sysem: the pipeline is designed with the best configuration. All the spares are from qualified brands at homc and abroad.

Sterilizer control system: SIEMENS PLC and SIEMENS touch screen, this system is easy to implement thc program selection, parameter seting equipment opeation, report processing and other functions. It has prfect safety measures The FO valuc and thc temperature time gives doublc guarantee for selizaion A single parameter control is also available. It hasa prfect sterilization records.



Main Parameters and Utilities about the  Pulse Vacuum Autoclave:

Design Pressure

0.245Mpa

Working Pressure

0.225Mpa

Design Temperature

139

Working Temperature

105-134

Vacuum

-0.09Mpa

Temperature Equilibrium

≤±1

Water Source Pressure

0.15-0.3Mpa

Compressed Air Pressure

0.3-0.7Mpa

Steam Pressure

0.3-0.7Mpa

Power

AC380V, 50HZ
The three-phase and five-wire system AC380V,50HZ



Size&Utilities about the Pulse Vacuum Autoclave:

Model

Overall Size L×W×H(mm)

Chamber Size L×W×H(mm)

Steam Consumption(KG)

Tap Water Consumption(KG)

Power(KW)

Net Weight(KG)

WG-0.25

1100×1350×1900

800×600×600

18KG

35KG

2+24KW

900KG

WG-0.36

1300×1350×1900

1000×600×600

25KG

40KG

2+24KW

1000KG

WG-0.6

1500×1360×1950

1200×610×910

30KG

45KG

3+36KW

1400KG

WG-0.8

1800×1360×1950

1500×610×910

40KG

50KG

3KW

1600KG

WG-1.2

1750×1440×1950

1450×680×1180

48KG

55KG

4KW

1800KG

WG-1.5

2150×1440×1950

1850×680×1180

55KG

60KG

4KW

2000KG

WG-2.0

1950×1750×2200

1600×900×1400

65KG

65KG

4.5KW

2500KG

WG-2.5

2300×1750×2200

1950×900×1400

75KG

75KG

6KW

3000KG

WG-3.0

2700×1750×2200

2400×900×1400

90KG

90KG

8KW

3500KG

Note: 2436 represent the power of the built-in steam generator (optional)
